amorphous alloy core is divided into several categories:three phase Oil-immersed amorphous alloy distribution transformer core,single phase Oil-immersed amorphous alloy distribution transformer core,underground amorphous alloy distribution transformer core,underground amorphous alloy street lamp transformer core,amorphous alloy Padmounted transformer core,separating box combined type amorphous alloy distribution transformer core,three phase dry amorphous alloy distribution transformer core.

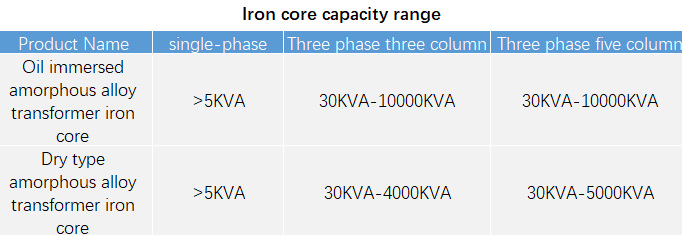

Product feature
1. Transformers are small and lightweight, reducing direct material costs
2. Transformers can be equipped easily and fast,the production capacity is greatly improved
3. Low noise
4. Compared with the same capacity and voltage grade silicon steel transformer,its No-load loss reduce 70%-80%,No-load current reduce about 75%,have good performance in energy saving.
First,material:1K101 amorphous ribbon
Second,Applicable magnetic flux density:
Single-phase transformer,1.30-1.40T
Three-phase transformer,1.25-1.35T
Third,Lamination factor:86%-88%
Fourth,core no-load loss and exciting power:
(1)Under the test condition of 1.3T,50Hz,the unit no-load loss is lees than or equal to 0.17w/kg,the unit exciting power is less than or equal to 0.35vA/kg
(2)Under the test condition of 1.35T,50Hz,,the unit no-load loss is lees than or equal to 0.18w/kg,the unit exciting power is less than or equal to 0.4vA/kg
Fifth,the design standard if core(referring to drawing 1):
(1)Ribbon width:142mm,170mm
(2)Window height(A):180-2000mm;tolerance=3/-0mm
(3)Window height(B):55-1500mm;tolerance=3/-0mm
(4)Stacking thickness(C):0-300mm;
(5)Joint stacking thickness(E):C×1.18-1.25mm
(6)Window round corner(R):6.4+/-1.5mm
(7)Core outer most cutting length:no longer than 10000mm
(8)Core surface coating:epoxy resin no more than 2mm
(9)Core thickness(D):no more than 4mm above the Ribbon width
Core structure drawing(drawing one) Three-phase three-column structure drawing(drawing two)
